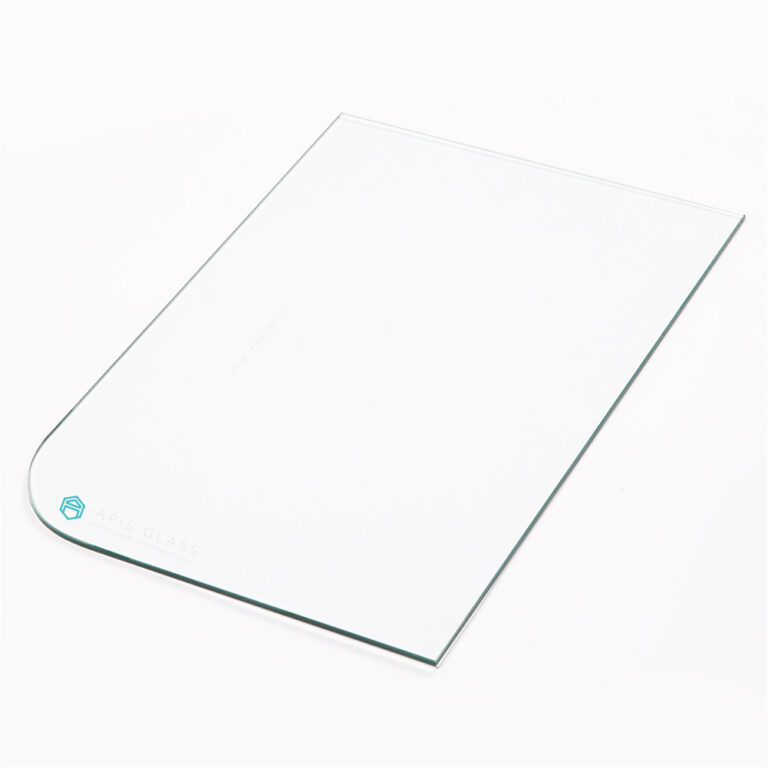

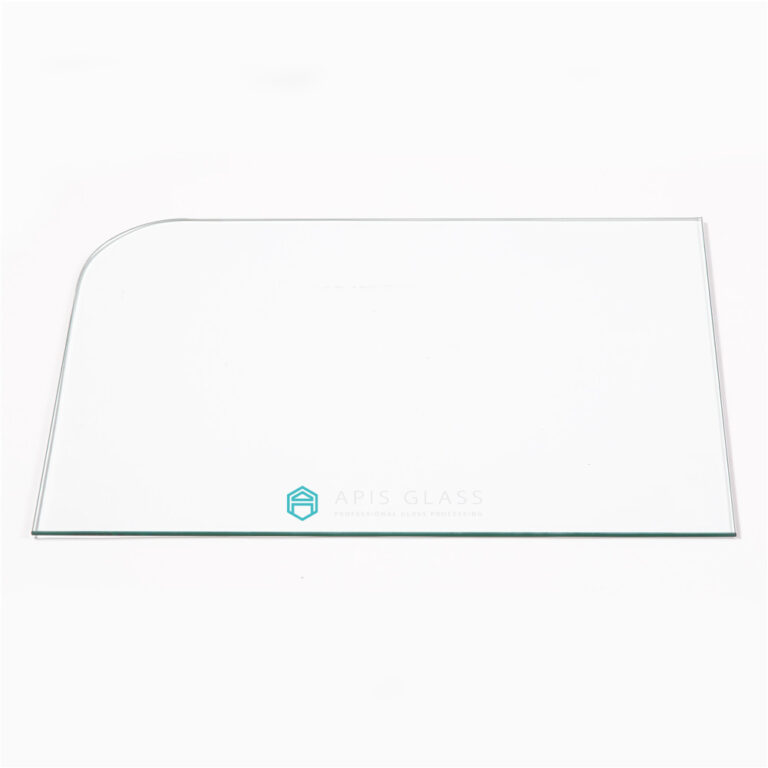

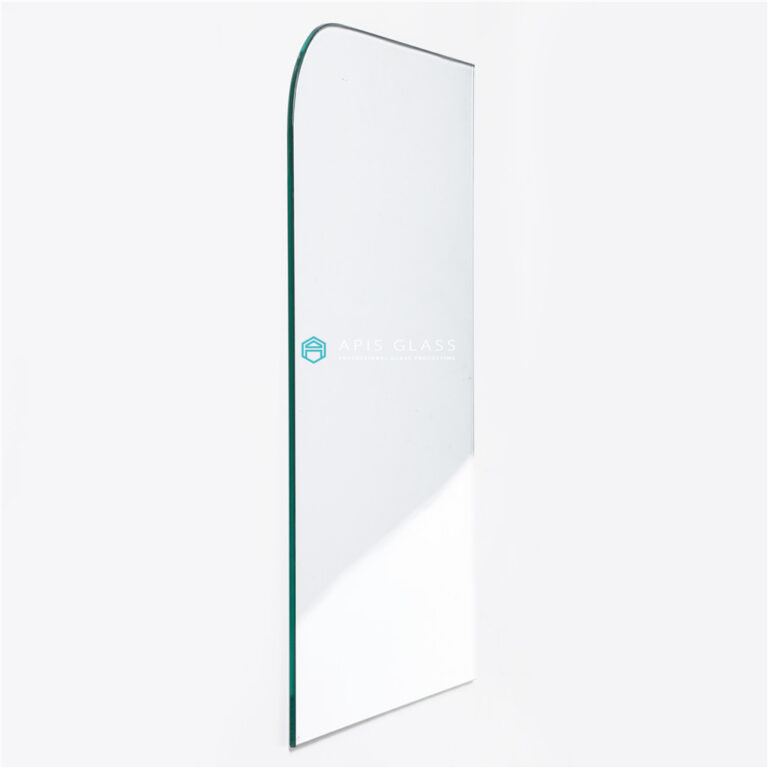

Tempered glass for Single Fixed Frameless Radius Shower Door

Clear Tempered Glass, flat polished edge, have valid CE and SGCC certificate.

Min Qty: 10pcs per size, can be mixed in a 20ft container with other styles.

Glass Thickness: Available for 5/16″(8mm), 3/8″(10mm) Thick Glass.

Customize Glass Size: The minimum width is 6″ and up to 72″ maximum. The maximum height will be 82″.

Logo can be printed.

Provide Door to Door delivery service.

Technical Parameters

Glass Thickness 5/16”(8mm), 3/8”(10mm), tolerance ±0.3mm
Glass Type Clear glass
Size Tolerance ±0.5mm
Diagonal size 1mm

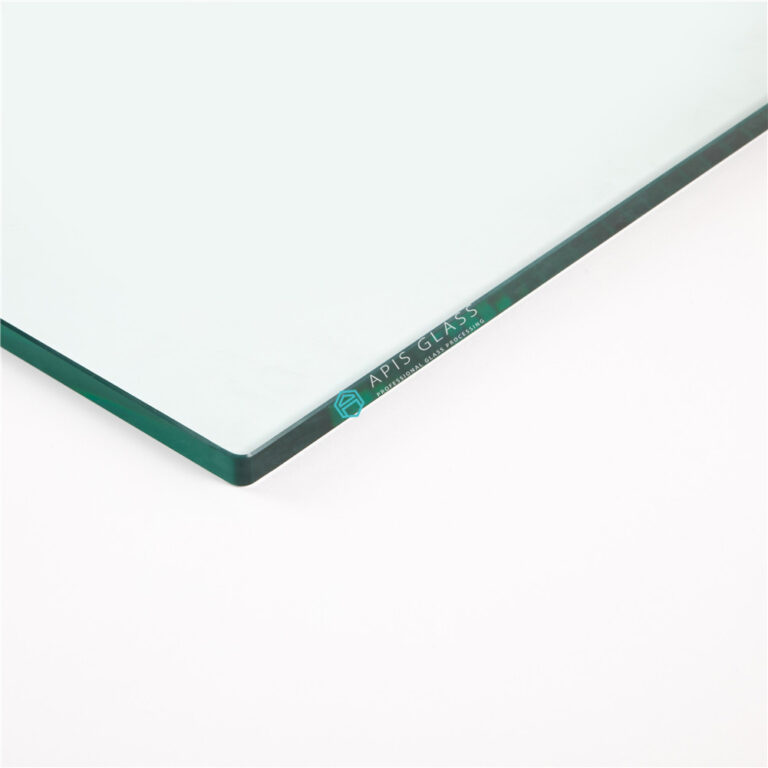

Edge Finishes Polished flat edge

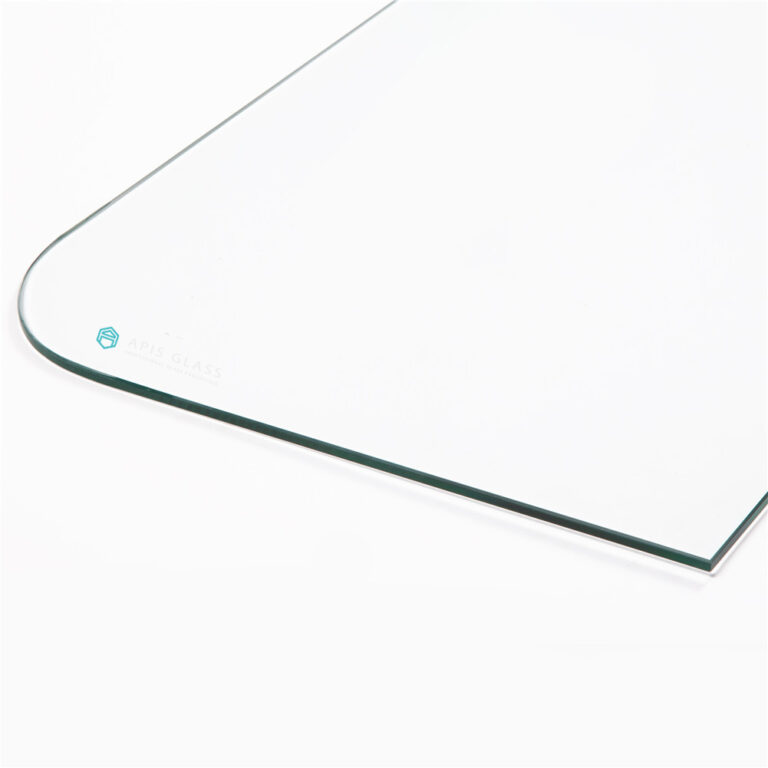

Corners R100-R300mm, Tolerance±0.2mm
Overall Bow Tempered curvature not exceed 1.5mm within 1000mm
Roller Wave Tempered wave not exceed 0.15mm within 300mm
Tempering Particle Counts 45-80 Particles per 50×50 mm

Application

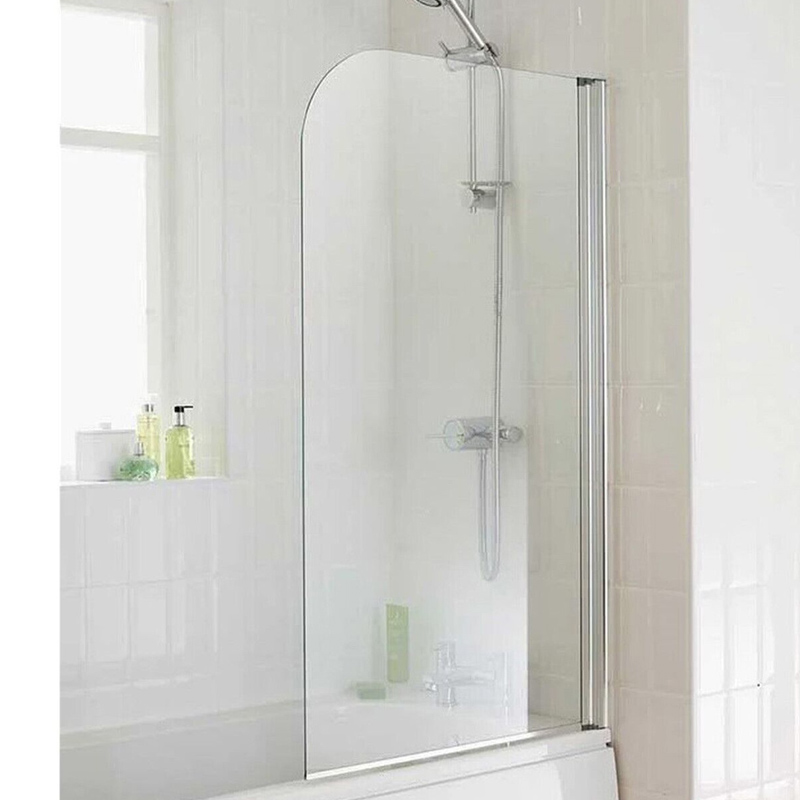

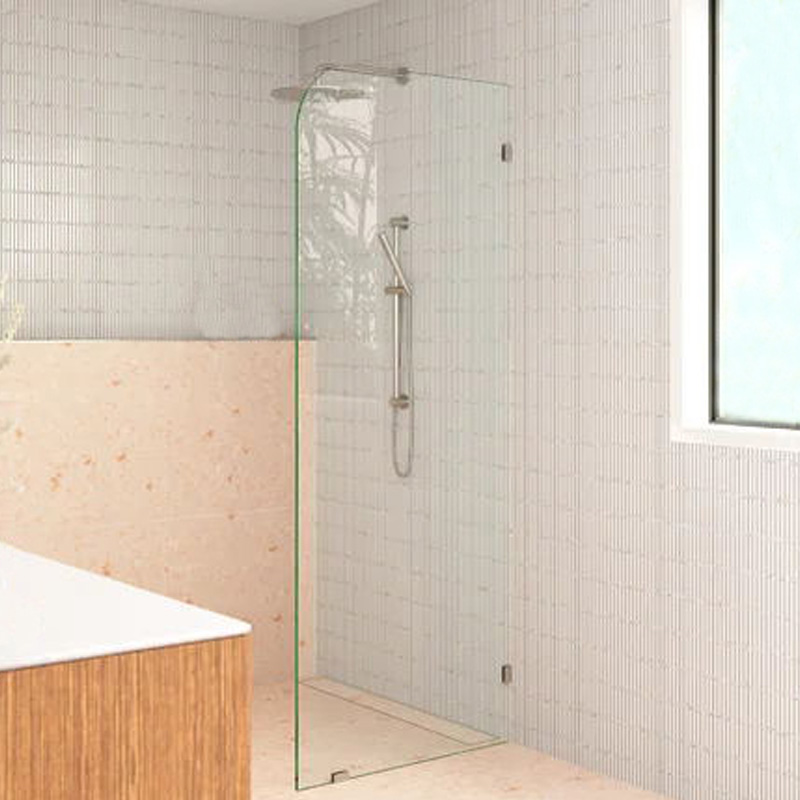

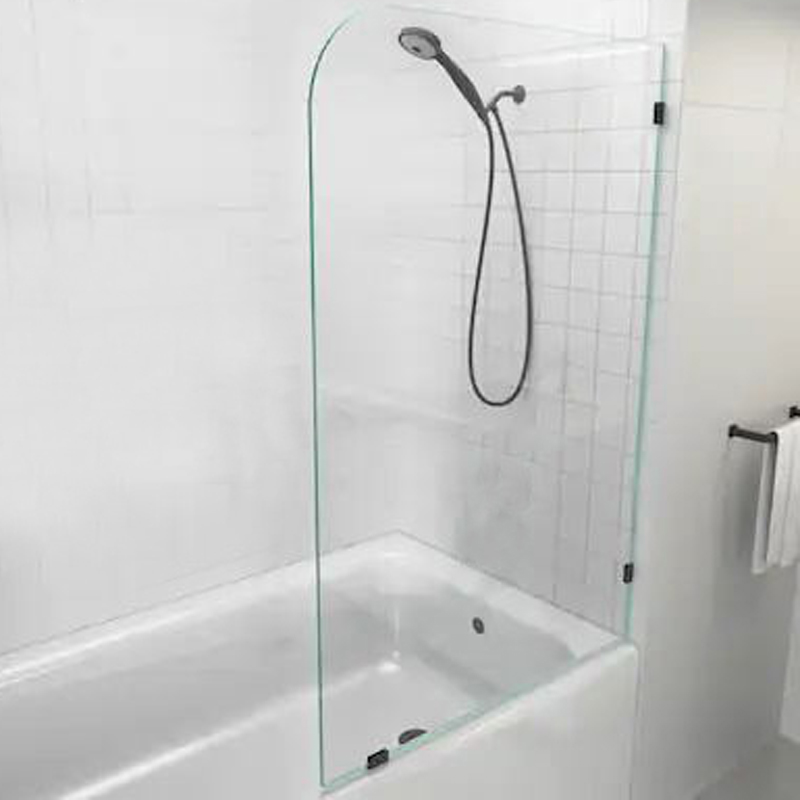

Apis’s fixed radius shower doors, the size of radius corners can be customized. Small corners or large corners all can be done.Can be mounted with diffirent color clamps as a single panel screen directly or installed on the bathtub .

Package and Transportation

『Plywood crate package, corks between glass』

Plywood crate packaging is a unique and efficient way to package and protect tempered shower glass. It is a cost-effective solution that can be used to safely transport items while ensuring they remain undamaged during transit. Plywood crates are designed to be strong enough to withstand the rigors of shipping, providing an extra layer of protection for your valuable cargo.

The glass is separated by a cork pad to prevent scratches between the glass and the gap between the glass can also prevent the glass from getting moldy

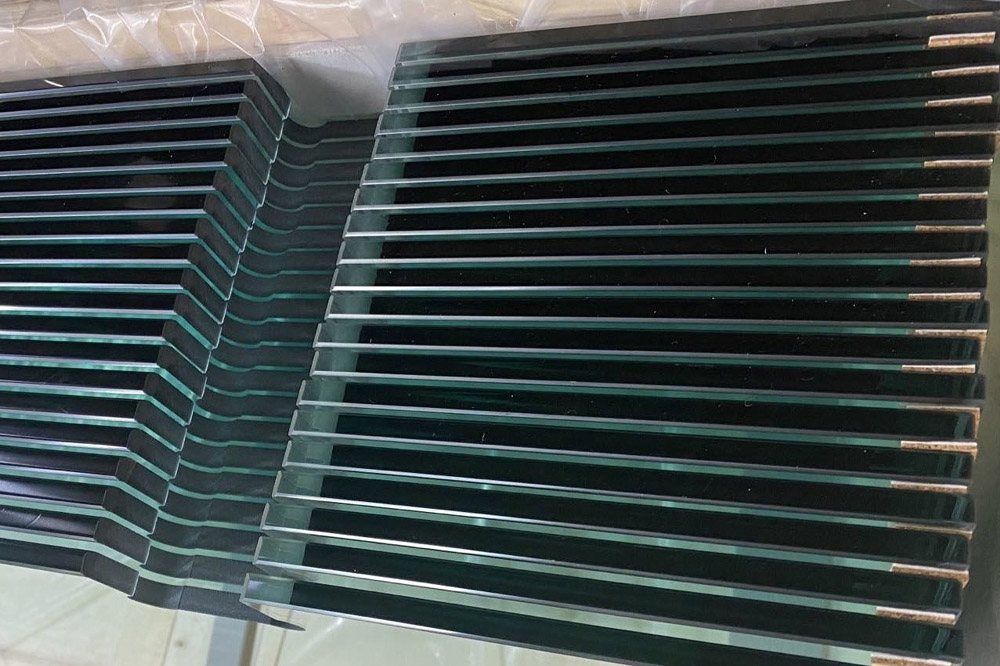

Cork betteen shower glass Apisglass

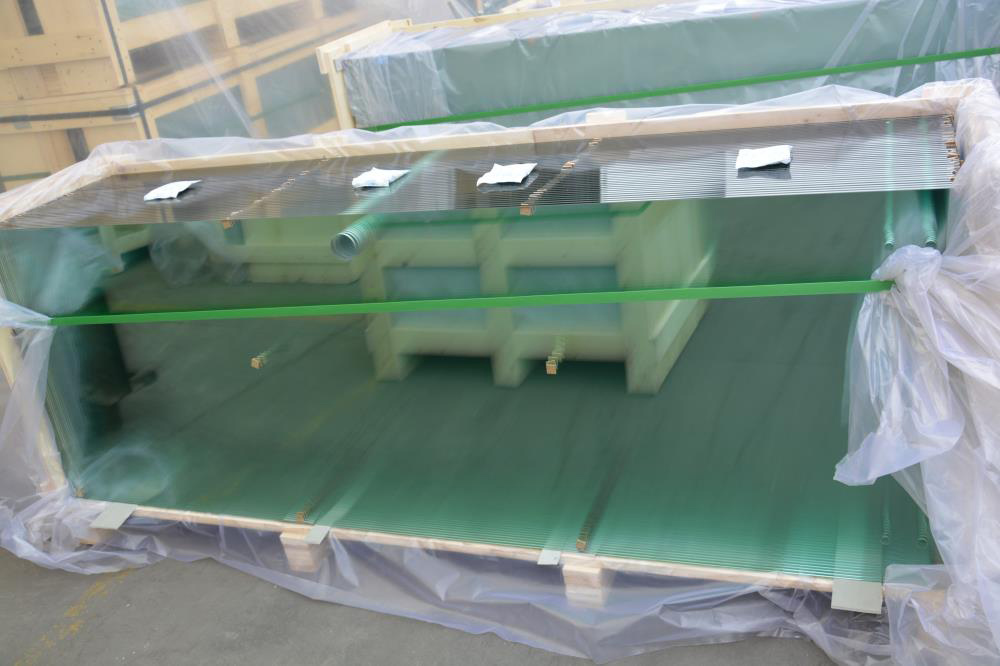

Desiccants placed in the wooden box Apisglass

Desiccant is placed in the wooden box to prevent the glass from becoming moldy

The wooden box can be unpacked on 3 sides, which is convenient for use in the workshop

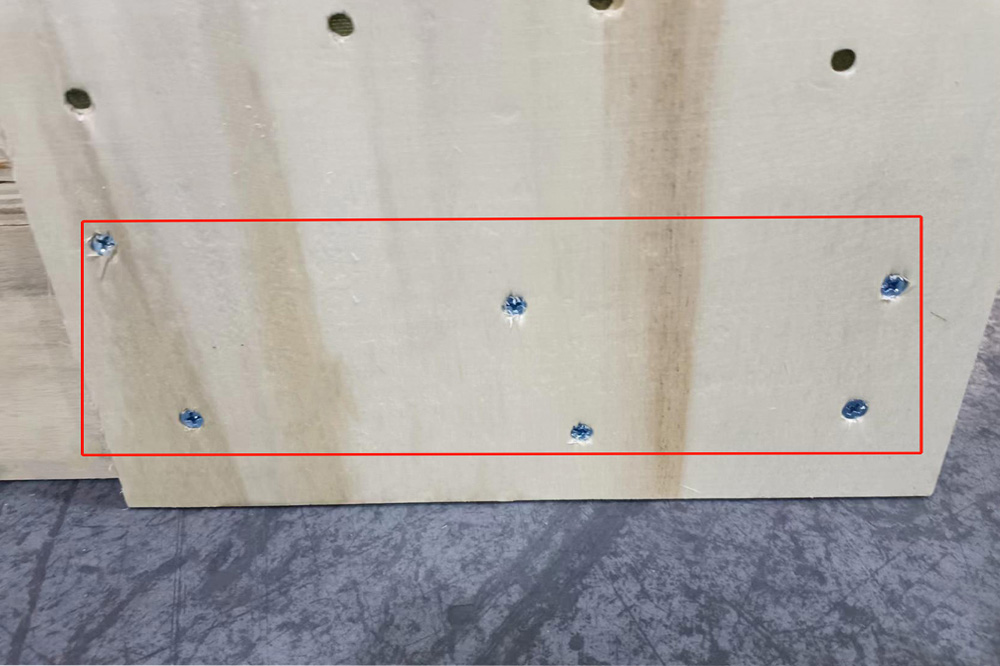

Crates are sealed by screws Apisglass

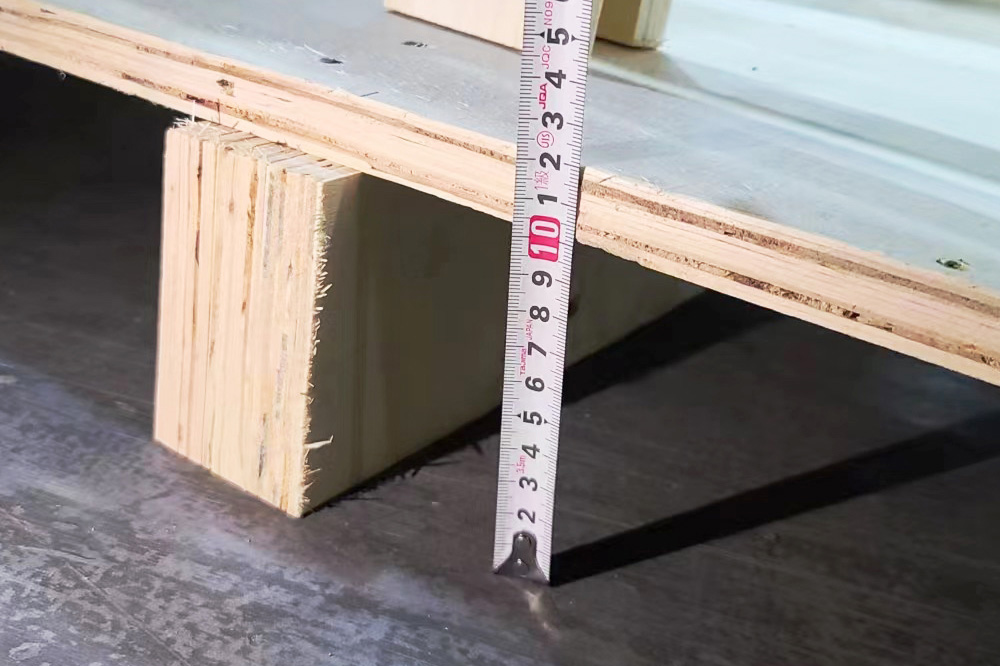

100mm foot height of crates by forklift

There is a 100mm wooden box Foot height, which is convenient for forklift handling

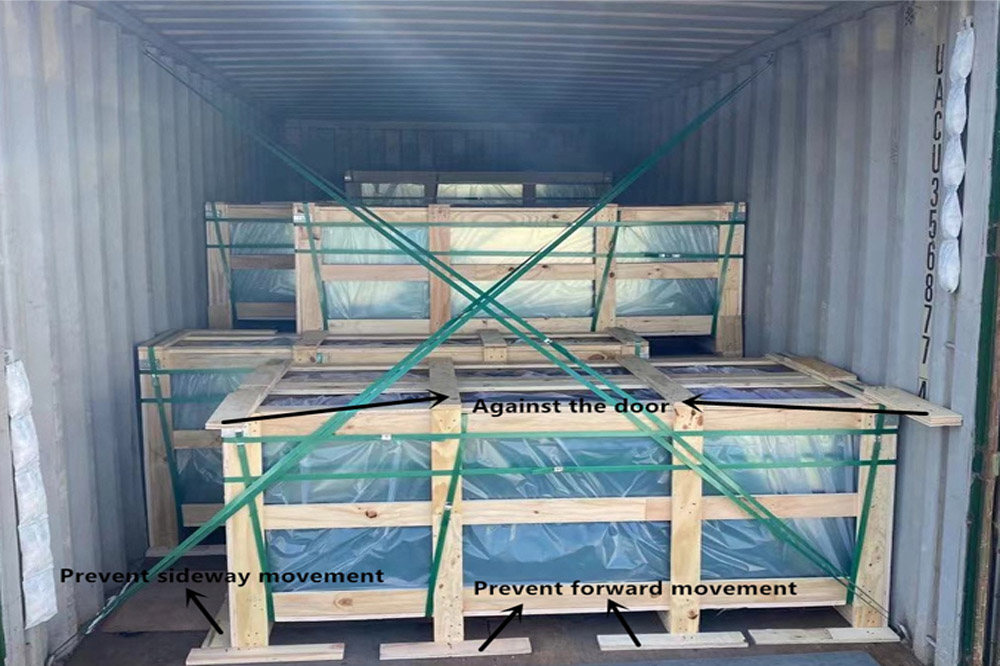

With scientific and reasonable reinforcement methods, the wooden crates are very stable in the container, and more than 440 containers are exported a year, and there has never been a transportation problem

Loading of Tempered shower glass

Optional features

『Optional features of glass』

Apis is a tempered shower glass manufacturer in China with advanced and complete set of processing equipments.17 years of experience in production and export to Europe and the United States,Can well understand the needs of customers and provide customers with high-quality products.

Glass types

Tinted glass, Ultra-clear, Printing glass, Pattern glass can be selected

Tempered shower glass Apisglass
Easy cleaning for glass shower doors Apisglass

Nano coating

Nano coating is Enduroshield brand which from Australia.5 years to 10 years warranty

If you are interested in any kind of optional features, welcome to contact us for a quotation.

Optional features of packing

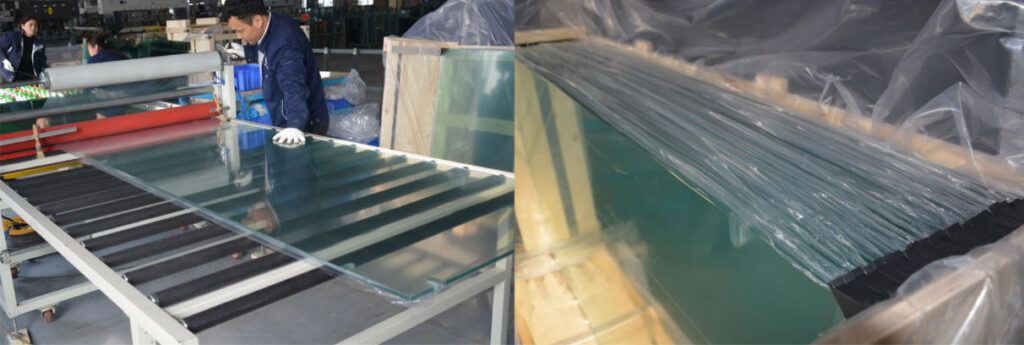

Another package with dust-free film
Dust-free film for shower glass

1. Each piece of glass is covered with a double-sided dust-proof film and covered with 4 corner protectors;
2. The Dust-proof film can effectively prevent the glass from scratching;
3. You can directly move the glass to your truck for installation, it can be easily handled, no need for more packages again;
4. In the process of handling and installation, don’t worry about the glass being dirty; After installation, remove the protective film directly. Save you lots of time cleaning glass.
5. There are plastic corner guards on all 4 corners, which can protect the corners of the glass from being damaged during transportation and installation.

Carton box of glass packing

Carton package is available.
Each piece of glass is individually packed in a carton with or without foam padding can be selected.

Carton package for shower glass
Carton package for shower glass
If you are interested in this kind of packaging, welcome to contact us for a quotation.

Quality and Service

『Quality Warranty』

All good products are manufactured!
The quality of glass depends on the most basic details of every production process. Apis insists on making every piece of glass to ensure that every piece of glass received by customers is a qualified product.

Apis provide perfect packaging and container reinforcement to ensure that the shower doors arrive in your hands intact.
Apis promise to pay or replace defective or broken products, please check the products once received the container, and contact us immediately if there is any defect.

『Professional production and sales service team』

Apis carry out weekly production plan, Raw material purchasing and process production are in accordance with the weekly plan,
So the delivery date is very punctual and there will be no delay in delivery.

The sales understand products, familiar with import and export trade knowledge, provide assistance throughout the process until the customer receives the goods.
